telescopic fume extraction arm

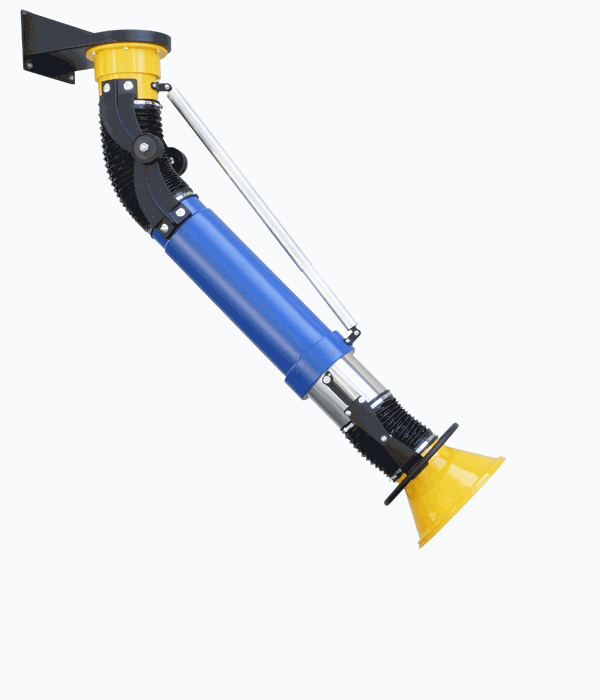

Tele 160 telescopic fume extraction arm has been designed for work in small, confined spaces especially with low ceilings. Tele 160 extraction arm is a unique construction which main principle is not to keep any internal mechanisms inside. The only device left inside is an air flow damper (no damper model available). Oskar telescoping arm is made of outside cast aluminium joints and two tubes which can move and rotate within each other. This product does not require any counter weight to work. Smooth tube design allows the lowest pressure drop as well as low noise levels. Construction of Tele 160 (like all other Oskar tube arms) means remarkable long product life time and simple maintenance. All adjustments on the outside allow for telescoping arm tension corrections without stopping air exhaust, contact with polluted air stream or fume arm interior.
Typical application
- schools, repair and maintenance, production lines, welding booths
- standard temperature resistance up to 80°C
- recommended airflow range 1000÷1400 m3/h
- local air pollution capture excluding chemically aggressive fumes and gases
Standard construction
- all adjustments on the outside
- aluminium hood with air diverter
- grab handle all around the hood
- aluminium hood joints
- cast aluminium swivel joints
- aluminium and steel mounting swivel
- smooth tube
- standard built-in air damper (T1618, T1626 models)
- black PVC flexible hoses (temperature resistance up to 80°C)
- standard powder coating
