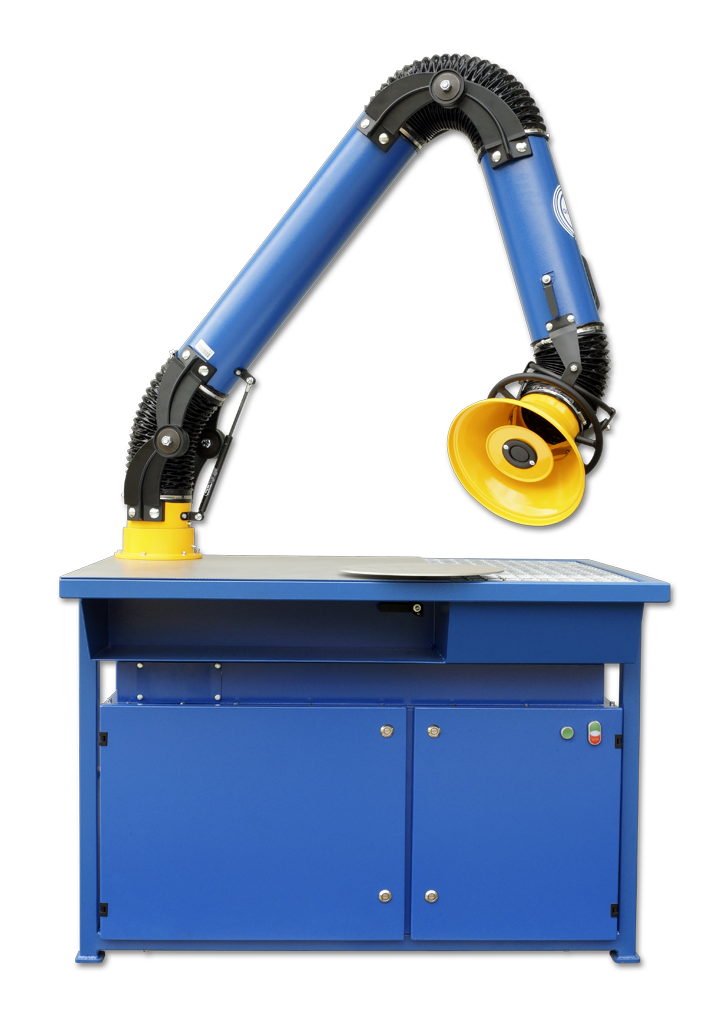

welding table with extraction and filter

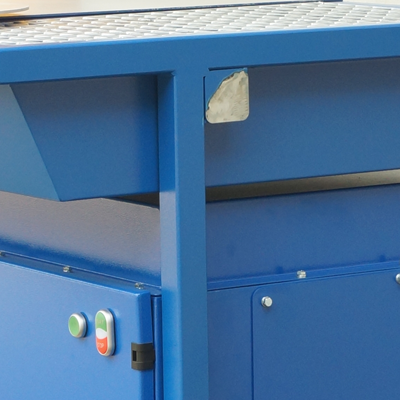

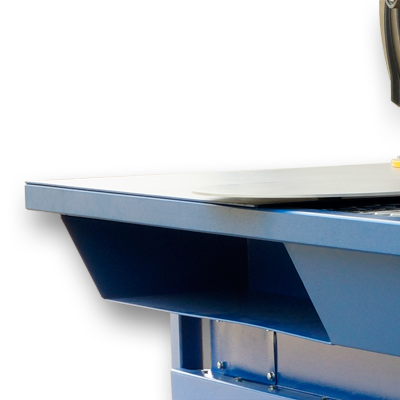

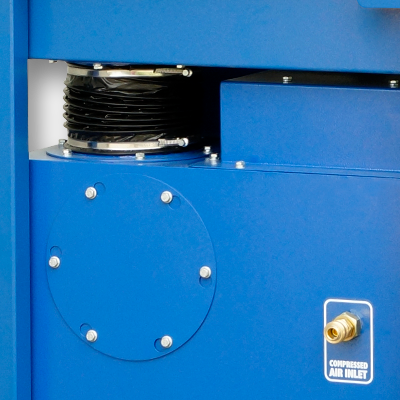

SF-1000 welding table is a work station equipped with capture, exhaust and filtration system which protects from air pollution appearing with workshop processes (especially during welding). SF-1000 table frame, made of heavy duty square profiles, features built-in downdraft exhaust, fume arm connection inlet and ZWR-03 aluminium radial impeller fan unit. Downdraft exhaust and fume arm individual dampers allow airflow adjustments. Capture air pollution is transported to Crawlair filter unit which purifies air through preliminary filter and cartridge filter module. Crawlair filter unit feature cartridge regeneration system which can be run manually or with optional timer. Surface of the SF-1000 welding table has been coated with conductive corrosion protection and grounding cable can be connected to left or right side of the table frame. SF-1000 welding table complete sets are offered with revolving table for more productive work on smaller elements.
Application
- heavy duty workbench with two exhausts for welding, cutting, grinding and many more for those who require reliable and long operational life time equipment
- air pollution capture with down draft and within range of fume arm
Standard construction
- 1000 m3/h airflow
- 1,1 kW Crawlair filter unit
- rigid, heavy duty, welded steel construction
- downdraft with-in the table surface
- easy to adjust airflow with two built in dampers (within the arm and table)
- revolving table on the table surface
- all parts powder coated (except for work surface)
- ready to work with Oskar fume arm 160 models
